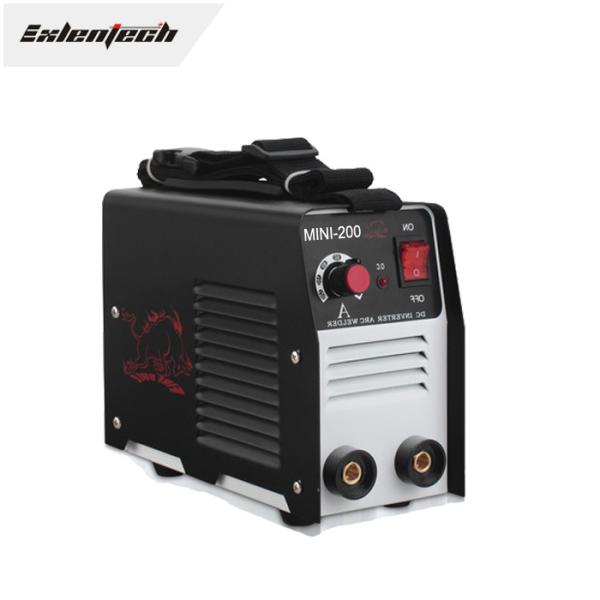

    Mini Single Pcb Board MMA Inverter Welder 120Amp IGBT Technology

    Ask Lasest Price
    Brand Name : EXLENTECH
    Model Number : MMA-200
    Certification : CE,CCC,UL
    Price : USD25-USD55/PC
    Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal
    Supply Ability : 10000pcs per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Mini Single Pcb Board MMA Inverter Welder 120Amp IGBT Technology

    Mini Single Pcb Board MMA Inverter Welder 120Amps IGBT Technology​


    Mini Single Pcb Board IGBT Inverter Welder With 120Amps Current Convenient Welding Tool


    MMA inverter welder features:

    1). IGBT Inverter Technology, stable and economical,

    2). Portable MINI Size Home Using,

    3). High duty cycle,

    4). Can weld carbon steel, alloy, steel and etc.


    Model:

    ARC-200

    Input power Voltage Frequency(V,Hz):

    AC220(single phase)±15%,50/60

    Rated input power capacity(KVA) :

    7

    No-load voltage(v):

    62

    Output current range.(A):

    20-200

    Rated output voltage(V):

    28

    Duty cycle (%)(25ºC):

    35

    No-load loss(w):

    40

    Efficiency(%):

    85

    Power factor (COSφ):

    0.93

    Insulation class:

    F

    Weight(KG):

    5

    Overall dimension(mm):

    315×115×200

    Case protection degree:

    IP21S

    Suitable diameter of rod(mm):

    1.6-3.2



    Delivery time:

    · Around 30 days after confirming the payment.


    MOQ:

    · The different products with different MOQ. Contact us with more details.

    · If with stock, 1-5 sets could be acceptable as well.


    Payment:

    · TT payment would be preferred: usually 30% deposit and the balance before shipment.


    Sample:

    Once price and order confirmed, we will be glad to send you the required samples for reference.


    First time to use this kind of machine

    · If you still have any question, please contact us by e-mail /phone / online service.

    · There is an English manual or guide video that show you how to use machine.


    If any problem with machine after receiving

    • 24 hours to support by E-mail or calling

    • Free parts could be sent to you in machine warranty period.

    Why choose us?

    • We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.

    • We use all new components,IGBT tube, diode,capacitor and so on imported components.

    • We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.

    • We provide Warranty period of 1 to 2 years for all our items.

    Quality first and service best is the faith we keep all the time.As we look to the future, we will continue to make progress by implementing a philosophy that stresses quality and service in all of our operations,thus making our future even stronger.

    We own completely independent product design and development ability;fist-class technology staff troop;excellent production facilities.And we follow rigorous testing standards which guarantees product quality.We do not pursue the best,but we always purse the better.Your satisfaction is also our gratification.We believe that we can be your most trustful partner
